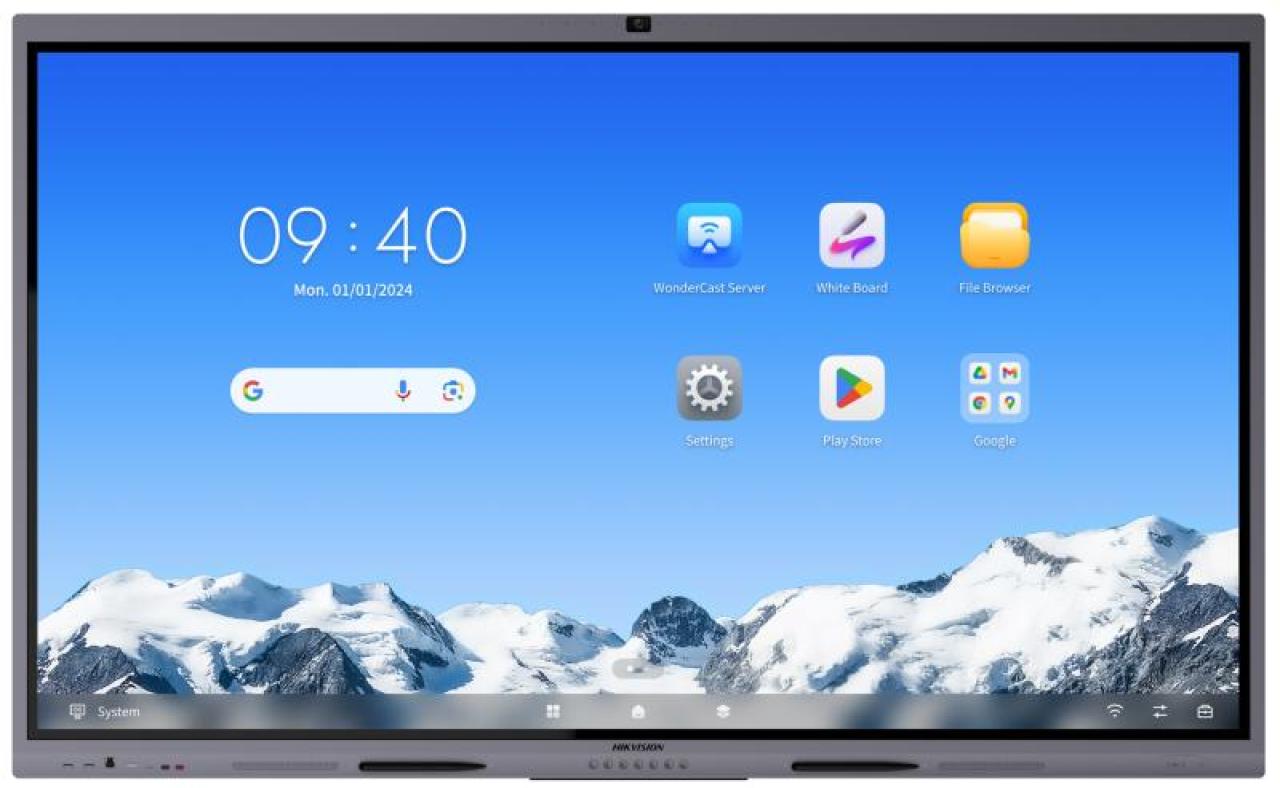

86-inch 4K Interactive Display

  • UHD 4K display with a resolution of 3840 × 2160 and 480 nits brightness.
  • Anti-Glare and Anti-Fingerprint design to ensure smooth interaction.
  • Dual systems of Android and Windows (optional with 195×30×180mm OPS) saving cost and easy to use, video conferencing software is recommended to run on the Windows system.
  • Supports up to 50-point multi-touch interaction with smooth and responsive writing.
  • Built-in network switch chip eliminates the need for an external network switch.
  • Multi-button front design for convenient classroom use.
  • Durable all-in-one design with tempered safety glass and intelligent thermal management.
  • Built-in Android 14 operating system with EDLA certification.
  • Dual full-function USB Type-C ports, supporting up to 100W total power delivery and DisplayPort 1.2 input.
  • Built-in sensors for ambient light, humidity, and temperature monitoring.
View Less
View more

Available models:

DS-D5C86RB/B2L(EDLA)
View more View Less

Specification

  • Product Model
  • Product ModelDS-D5C86RB/B2L
  • Display
  • Screen Size86 inch
  • BacklightDLED
  • Pixel Pitch0.164 (H) × 0.493 (V) mm
  • Resolution3840 × 2160 @60 Hz
  • Brightness480 cd/m² (Typ.)
  • Color Depth10 bit (8 bit + FRC)
  • Display Color1.07 G
  • Response Time5 ms
  • Panel TypeVA
  • Contrast Ratio5000:1 (Static) 30,000:1 (Dynamic)
  • Color Gamut72% NTSC (CIE1931) (Typ.)
  • Refresh Rate60 Hz
  • Viewing Angle178° (H)/178° (V)
  • Aspect Ratio16:9
  • Surface Hardness9H (Pencil) 7 (Mohs)
  • Surface GlassAnti-Glare & Anti-Fingerprint glass
  • Surface Haze25% Haze
  • Glass Bonding MethodZero Lamination
  • Display Area1895.04 × 1065.96 mm
  • Working Duration7 × 16 H
  • Transmittance88% ± 3
  • Lifespan50,000 hours
  • Touch
  • TypeInfrared Touch Screen
  • Touch PointUp to 50-point multi-touch
  • Touch Response Time≤ 2 ms
  • Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
  • Touch Precision± 0.5 mm (≥ 90% touching area)
  • Touch Resolution32768 × 32768
  • Built-in System
  • Operation SystemAndroid 14.0
  • Memory8 GB (Optional 16 GB) + Max 16 GB Virtual RAM
  • Built-in Storage128 GB (Optional 256 GB)
  • ProcessorQuad-core Cortex-A76 × 4(2.4 GHz)and quad-core Cortex-A55 × 4(1.8 GHz)
  • GPUMali-G610 MC4
  • HDCP Version2.3 & 2.0 & 1.4
  • NPU6TOPs
  • Camera
  • Pixel48 MP for Photos & 8 MP for Video
  • Camera FunctionIntelligent switching between Android, OPS, and external PC systems.
  • Field Angle93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
  • Distortion≤ 2.5%
  • Camera Resolution RatioUp to 4K
  • Microphone
  • SpecificationOmni-directional 8-array layout
  • Mic FunctionEcho reduction and smart noise-cancellation
  • Voice Distance12 m
  • Sampling Rate32 K
  • Mic Depth16 bit
  • Internal Function
  • LoudspeakerBuilt-in 2 × 20 W + 25 W loudspeaker;
  • Language SupportedSimplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali
  • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
  • NFCSupport card reader 13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)
  • Light SensorYes
  • Humidity and Temperature Sensor Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C
  • Image Processing TechnologySupports 3D digital noise reduction, face detection, automatic white balance, automatic purple fringing correction, automatic defogging, and shadow correction.
  • Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
  • AI FunctionAI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes.
  • WhiteboardBuilt-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more.
  • ScreenCastBuilt-in WonderCast software supports screen casting for up to 9 devices simultaneously.
  • Interface
  • Video & Audio InputHDMI 2.1 TMDS × 3(Front x 1; Rear x 2; Support HDCP2.3 & 2.0 & 1.4; Support HDMI CEC protocol) VGA × 1(Rear) Audio × 1(Rear)
  • Video & audio outputHDMI 2.1 TMDS × 1(Rear) Audio × 1(Rear) SPDIF × 1(Rear)
  • Control interfaceTOUCH-USB 3.0 × 1(Front × 1) TOUCH-USB 2.0 × 2(Rear × 2) RS232 × 1(Rear)
  • Network InterfaceLAN (1000 Mbps) × 2(Rear) Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
  • Data Transmission InterfaceUSB 3.0 × 4(Front × 2; Rear × 2) USB 2.0 × 1(Rear) Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )
  • Power
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Standby Consumption≤ 0.5 W
  • Average Consumption< 274 W
  • Working Environment
  • Working Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Working Humidity10%~90% RH
  • General
  • VESA800 mm × 600 mm (4 × M8-25 mm)
  • AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth.
  • Package Dimensions (W × H × D)2157 × 1345 × 223 mm
  • Net Weight58.9 ± 0.5 kg
  • Gross Weight78.9 ± 0.5 kg
  • Product Dimensions (With Wall Attachment)1960.4 × 1173.7 × 106.4mm
  • Product Dimensions (Without Wall Attachment)1960.4 × 1173.7 × 82.4 mm
