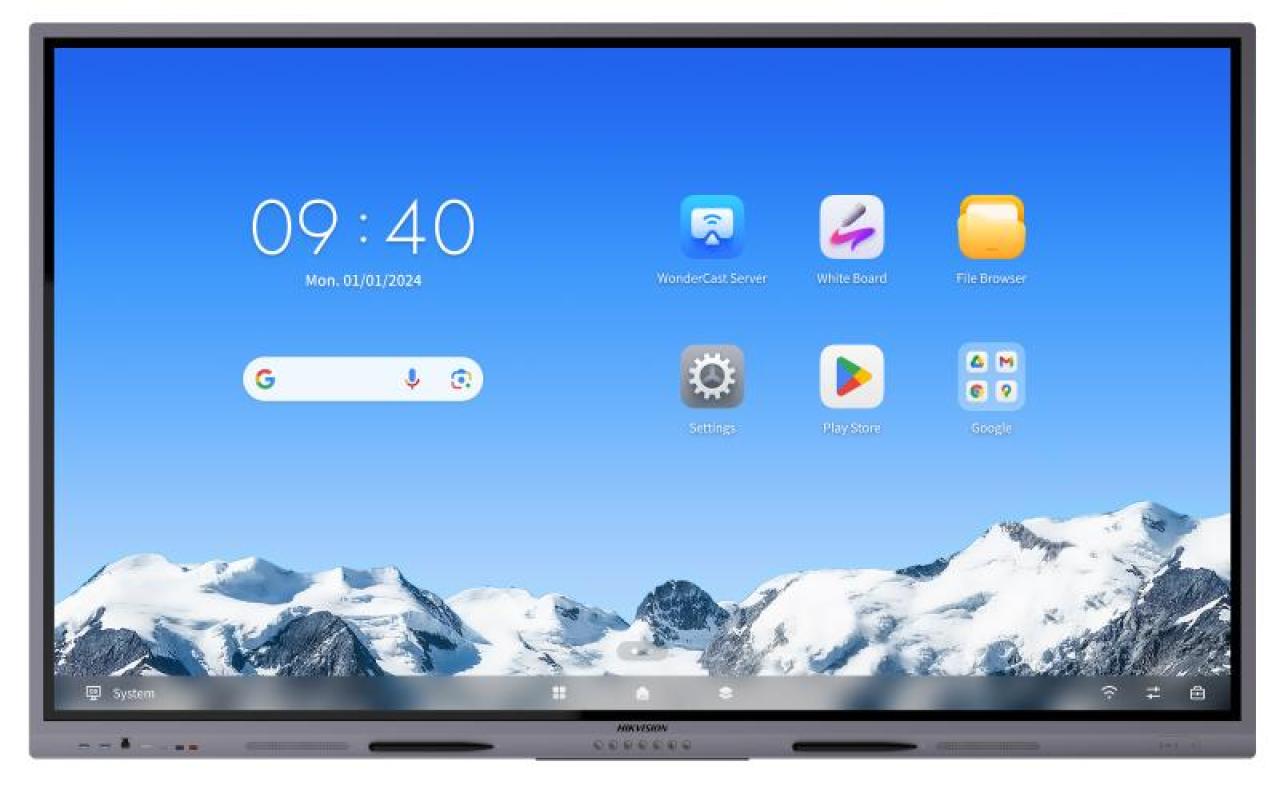

86-inch 4K Interactive Display

  • UHD 4K display with resolution of 3840 × 2160.
  • Anti-glare and anti-blocking design to ensure smooth interaction.
  • Dual systems of Android and Windows (optional with OPS) saving cost and easy to use, video conference software are recommonded to run under Windows system.
  • Quick response, at most 50-point touch control and smooth writing experience.
  • Built-in network switch chip saves a network switch.
  • Multi-button design in front, convenient for classroom use.
  • All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed.
  • Built-in Android 14 system, EDLA Certified
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D5C86RB/A2L(EDLA)
DS-D5C86RB/A2L
Data Sheet

Specification

  • Product Model
  • Product ModelDS-D5C86RB/A2L
  • Display
  • Screen Size86 inch
  • BacklightDLED
  • Pixel Pitch0.164 (H) × 0.493 (V) mm
  • Resolution3840 × 2160 @60 Hz
  • Brightness480 cd/m² (Typ.)
  • Color Depth10 bit
  • Display Color1.07 G
  • Response Time5 ms
  • Panel TypeVA
  • Contrast Ratio5000:1 (Static) 30,000:1 (Dynamic)
  • Color Gamut72% NTSC (CIE1931) (Typ.)
  • Refresh Rate60 Hz
  • Viewing Angle178° (H)/178° (V)
  • Aspect Ratio16:9
  • Surface Hardness9H (Pencil) 7 (Mohs)
  • Surface GlassAnti-Glare Glass
  • Surface Haze25% Haze
  • Glass Bonding MethodZero Lamination
  • Display Area1895.04 (H) × 1065.96 (V)
  • Working Duration7 × 16 H
  • Transmittance88% ± 3
  • Lifespan50,000 hours
  • Touch
  • TypeInfrared Touch Screen
  • Touch PointUp to 50-point multi-touch
  • Touch Response Time≤ 2 ms
  • Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
  • Touch Precision± 0.5 mm (≥ 90% touching area)
  • Touch Resolution32768 × 32768
  • Built-in System
  • Operation SystemAndroid 14.0
  • Memory8 GB
  • Built-in Storage128 GB
  • ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
  • GPUMali-G610 MC4
  • HDCP Version2.3 & 2.0 & 1.4
  • Internal Function
  • LoudspeakerBuilt-in 2 × 20 W + 25 W loudspeaker;
  • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
  • NFCSupport card reader 13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)
  • Light SensorYes
  • Humidity and Temperature Sensor Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C
  • Interface
  • Video & Audio InputHDMI 2.0 × 3（Front × 1; Rear × 2; Support HDCP 2.3 & 2.0 & 1.4） VGA × 1（Rear） Audio × 1（Rear）
  • Video & audio outputHDMI 2.0 × 1（Rear） Audio × 1（Rear） SPDIF × 1（Rear）
  • Control interfaceTOUCH-USB 3.0 × 1（Front × 1） TOUCH-USB 2.0 × 2（Rear × 2） RS232 × 1（Rear）
  • Network InterfaceLAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
  • Data Transmission InterfaceUSB 3.0 × 4（Front × 2; Rear × 2） USB 2.0 × 1（Rear） Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )
  • Power
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Standby Consumption≤ 0.5 W
  • Average Consumption< 274 W
  • Working Environment
  • Working Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Working Humidity10%~90% RH
  • General
  • VESA800 mm × 600 mm (4 × M8-25 mm)
  • AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth.
  • Package Dimensions (W × H × D)2157 × 1345 × 223 mm
  • Net Weight58.5 ± 0.5 kg
  • Gross Weight78.5 ± 0.5 kg
  • Product Dimensions （With Wall Attachment）1960.4 × 1158.2 × 114.5 mm
  • Product Dimensions （Without Wall Attachment）1960.4 × 1158.2 × 82.5 mm
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D5C86RB/A2L
Display
Screen Size
86 inch
Backlight
DLED
Pixel Pitch
0.164 (H) × 0.493 (V) mm
Resolution
3840 × 2160 @60 Hz
Brightness
480 cd/m² (Typ.)
Color Depth
10 bit
Display Color
1.07 G
Response Time
5 ms
Panel Type
VA
Contrast Ratio
5000:1 (Static) 30,000:1 (Dynamic)
Color Gamut
72% NTSC (CIE1931) (Typ.)
Refresh Rate
60 Hz
Viewing Angle
178° (H)/178° (V)
Aspect Ratio
16:9
Surface Hardness
9H (Pencil) 7 (Mohs)
Surface Glass
Anti-Glare Glass
Surface Haze
25% Haze
Glass Bonding Method
Zero Lamination
Display Area
1895.04 (H) × 1065.96 (V)
Working Duration
7 × 16 H
Transmittance
88% ± 3
Lifespan
50,000 hours
Touch
Type
Infrared Touch Screen
Touch Point
Up to 50-point multi-touch
Touch Response Time
≤ 2 ms
Minimum Touch Object
≥ 1.5 mm (≥ 90% touching area)
Touch Precision
± 0.5 mm (≥ 90% touching area)
Touch Resolution
32768 × 32768
Built-in System
Operation System
Android 14.0
Memory
8 GB
Built-in Storage
128 GB
Processor
Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
GPU
Mali-G610 MC4
HDCP Version
2.3 & 2.0 & 1.4
Internal Function
Loudspeaker
Built-in 2 × 20 W + 25 W loudspeaker;
Bluetooth
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
NFC
Support card reader 13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)
Light Sensor
Yes
Humidity and Temperature Sensor
Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C
Interface
Video & Audio Input
HDMI 2.0 × 3（Front × 1; Rear × 2; Support HDCP 2.3 & 2.0 & 1.4） VGA × 1（Rear） Audio × 1（Rear）
Video & audio output
HDMI 2.0 × 1（Rear） Audio × 1（Rear） SPDIF × 1（Rear）
Control interface
TOUCH-USB 3.0 × 1（Front × 1） TOUCH-USB 2.0 × 2（Rear × 2） RS232 × 1（Rear）
Network Interface
LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface
USB 3.0 × 4（Front × 2; Rear × 2） USB 2.0 × 1（Rear） Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )
Power
Power Supply
100 to 240 VAC, 50/60 Hz
Standby Consumption
≤ 0.5 W
Average Consumption
< 274 W
Working Environment
Working Temperature
0 °C to 40 °C (32 °F to 104 °F)
Working Humidity
10%~90% RH
General
VESA
800 mm × 600 mm (4 × M8-25 mm)
Accessory
Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth.
Package Dimensions (W × H × D)
2157 × 1345 × 223 mm
Net Weight
58.5 ± 0.5 kg
Gross Weight
78.5 ± 0.5 kg
Product Dimensions （With Wall Attachment）
1960.4 × 1158.2 × 114.5 mm
Product Dimensions （Without Wall Attachment）
1960.4 × 1158.2 × 82.5 mm
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Product Model
  • Product ModelDS-D5C86RB/A2L
Display
  • Screen Size86 inch
  • BacklightDLED
  • Pixel Pitch0.164 (H) × 0.493 (V) mm
  • Resolution3840 × 2160 @60 Hz
  • Brightness480 cd/m² (Typ.)
  • Color Depth10 bit
  • Display Color1.07 G
  • Response Time5 ms
  • Panel TypeVA
  • Contrast Ratio5000:1 (Static) 30,000:1 (Dynamic)
  • Color Gamut72% NTSC (CIE1931) (Typ.)
  • Refresh Rate60 Hz
  • Viewing Angle178° (H)/178° (V)
  • Aspect Ratio16:9
  • Surface Hardness9H (Pencil) 7 (Mohs)
  • Surface GlassAnti-Glare Glass
  • Surface Haze25% Haze
  • Glass Bonding MethodZero Lamination
  • Display Area1895.04 (H) × 1065.96 (V)
  • Working Duration7 × 16 H
  • Transmittance88% ± 3
  • Lifespan50,000 hours
Touch
  • TypeInfrared Touch Screen
  • Touch PointUp to 50-point multi-touch
  • Touch Response Time≤ 2 ms
  • Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
  • Touch Precision± 0.5 mm (≥ 90% touching area)
  • Touch Resolution32768 × 32768
Built-in System
  • Operation SystemAndroid 14.0
  • Memory8 GB
  • Built-in Storage128 GB
  • ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
  • GPUMali-G610 MC4
  • HDCP Version2.3 & 2.0 & 1.4
Internal Function
  • LoudspeakerBuilt-in 2 × 20 W + 25 W loudspeaker;
  • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
  • NFCSupport card reader 13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)
  • Light SensorYes
  • Humidity and Temperature Sensor Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C
Interface
  • Video & Audio InputHDMI 2.0 × 3（Front × 1; Rear × 2; Support HDCP 2.3 & 2.0 & 1.4） VGA × 1（Rear） Audio × 1（Rear）
  • Video & audio outputHDMI 2.0 × 1（Rear） Audio × 1（Rear） SPDIF × 1（Rear）
  • Control interfaceTOUCH-USB 3.0 × 1（Front × 1） TOUCH-USB 2.0 × 2（Rear × 2） RS232 × 1（Rear）
  • Network InterfaceLAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
  • Data Transmission InterfaceUSB 3.0 × 4（Front × 2; Rear × 2） USB 2.0 × 1（Rear） Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )
Power
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Standby Consumption≤ 0.5 W
  • Average Consumption< 274 W
Working Environment
  • Working Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Working Humidity10%~90% RH
General
  • VESA800 mm × 600 mm (4 × M8-25 mm)
  • AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth.
  • Package Dimensions (W × H × D)2157 × 1345 × 223 mm
  • Net Weight58.5 ± 0.5 kg
  • Gross Weight78.5 ± 0.5 kg
  • Product Dimensions （With Wall Attachment）1960.4 × 1158.2 × 114.5 mm
  • Product Dimensions （Without Wall Attachment）1960.4 × 1158.2 × 82.5 mm
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
