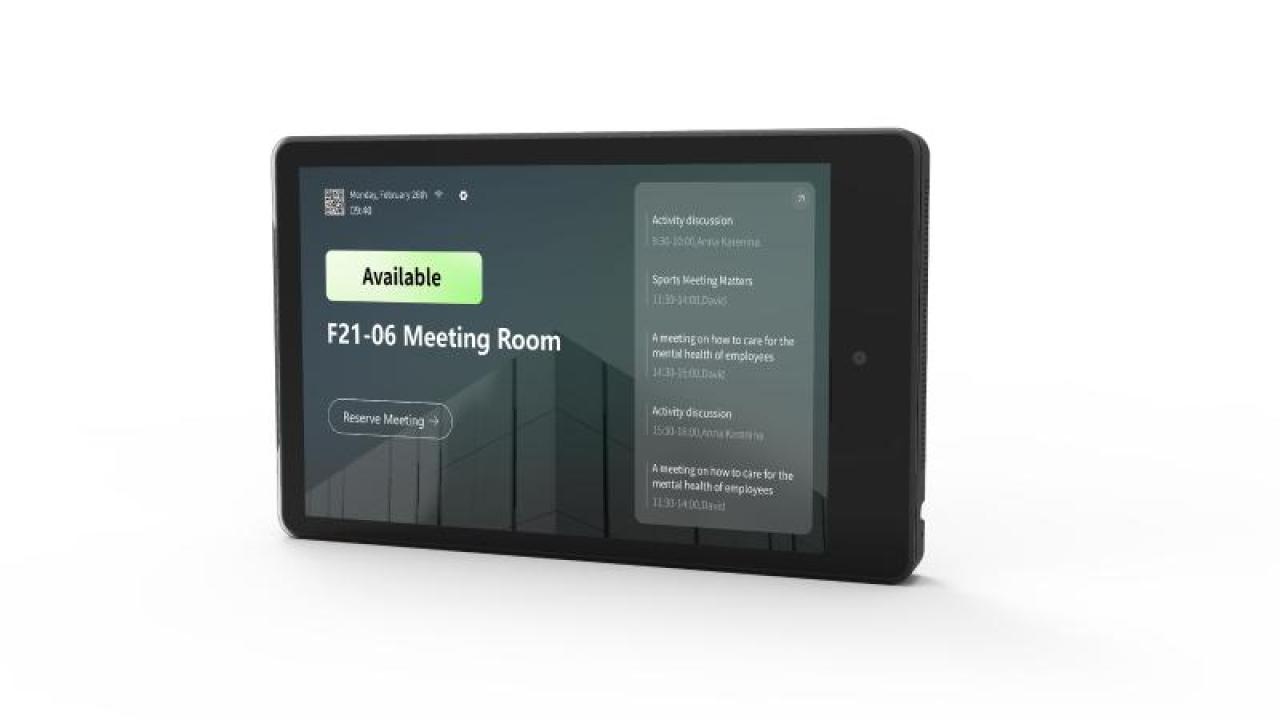

10-inch Scheduling Panel

  • Meeting information display: Meeting topic, meeting room information, host, time and other information according to the meeting status;
  • Face and swipe card sign-in authentication: During the meeting time, through automatic identification and swipe card authentication, participants are signed in and reported to the platform;
  • Access control linkage control: According to the result of personnel sign-in authentication, trigger the electric signal, directly linkage electromagnetic lock to open the door;
  • System compatibility: support for AD domain functions and access to exchange server
  • Meeting management system: Hispire SMM Platform
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D5F10CB/BH
DS-D5F10CB/BH NEW
Data Sheet

Specification

  • Product Model
  • Product ModelDS-D5F10CB/BH
  • Display
  • Screen Size10.1 inch
  • Brightness250 cd/m²
  • Viewing Angle170°(H)/170°(V)
  • Physical Resolution1280 × 800
  • Touch
  • Touch point10
  • Built-in System
  • Processor4 cores ARM Cortex-A55
  • Memory2 GB
  • Built-in storage16 GB
  • Operation SystemAndroid 11.0
  • Camera2 MP WDR Camera
  • Card ReaderNFC,13.56MHz, (ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica）
  • Mic FunctionInclude
  • Internal Function
  • Loudspeaker8 Ω，2 W × 2
  • Interface
  • Data transmission interfaceMicro USB OTG × 1;USB 3.0 × 1 Access control linkage interface × 1; 3.5mm Audio × 1
  • Network interfaceRJ45, 1000 M LAN (IEEE802.3at，PoE 56-57V，class 4，25.5W)
  • BluetoothBT4.1
  • IndicatorLED
  • General
  • Power12 VDC, 1.5 A
  • Product Dimensions 275*170*25mm
  • Mounting Type Wall mounting
  • Power Consumption18 W
  • Net Weight1.5 kg
  • Package Dimensions 390*220*68mm
  • Gross Weight3.7 kg
  • Packing List Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, Micro USB Cable× 1, Compliance Manual× 1
  • Working Environment
  • Operation Humidity0%~95%
  • Storage Temperature-40 ℃~85 ℃
  • Opration Temperature0 ℃~40 ℃
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D5F10CB/BH
Display
Screen Size
10.1 inch
Brightness
250 cd/m²
Viewing Angle
170°(H)/170°(V)
Physical Resolution
1280 × 800
Touch
Touch point
10
Built-in System
Processor
4 cores ARM Cortex-A55
Memory
2 GB
Built-in storage
16 GB
Operation System
Android 11.0
Camera
2 MP WDR Camera
Card Reader
NFC,13.56MHz, (ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica）
Mic Function
Include
Internal Function
Loudspeaker
8 Ω，2 W × 2
Interface
Data transmission interface
Micro USB OTG × 1;USB 3.0 × 1 Access control linkage interface × 1; 3.5mm Audio × 1
Network interface
RJ45, 1000 M LAN (IEEE802.3at，PoE 56-57V，class 4，25.5W)
Bluetooth
BT4.1
Indicator
LED
General
Power
12 VDC, 1.5 A
Product Dimensions
275*170*25mm
Mounting Type
Wall mounting
Power Consumption
18 W
Net Weight
1.5 kg
Package Dimensions
390*220*68mm
Gross Weight
3.7 kg
Packing List
Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, Micro USB Cable× 1, Compliance Manual× 1
Working Environment
Operation Humidity
0%~95%
Storage Temperature
-40 ℃~85 ℃
Opration Temperature
0 ℃~40 ℃
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Product Model
  • Product ModelDS-D5F10CB/BH
Display
  • Screen Size10.1 inch
  • Brightness250 cd/m²
  • Viewing Angle170°(H)/170°(V)
  • Physical Resolution1280 × 800
Touch
  • Touch point10
Built-in System
  • Processor4 cores ARM Cortex-A55
  • Memory2 GB
  • Built-in storage16 GB
  • Operation SystemAndroid 11.0
  • Camera2 MP WDR Camera
  • Card ReaderNFC,13.56MHz, (ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica）
  • Mic FunctionInclude
Internal Function
  • Loudspeaker8 Ω，2 W × 2
Interface
  • Data transmission interfaceMicro USB OTG × 1;USB 3.0 × 1 Access control linkage interface × 1; 3.5mm Audio × 1
  • Network interfaceRJ45, 1000 M LAN (IEEE802.3at，PoE 56-57V，class 4，25.5W)
  • BluetoothBT4.1
  • IndicatorLED
General
  • Power12 VDC, 1.5 A
  • Product Dimensions 275*170*25mm
  • Mounting Type Wall mounting
  • Power Consumption18 W
  • Net Weight1.5 kg
  • Package Dimensions 390*220*68mm
  • Gross Weight3.7 kg
  • Packing List Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, Micro USB Cable× 1, Compliance Manual× 1
Working Environment
  • Operation Humidity0%~95%
  • Storage Temperature-40 ℃~85 ℃
  • Opration Temperature0 ℃~40 ℃
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
