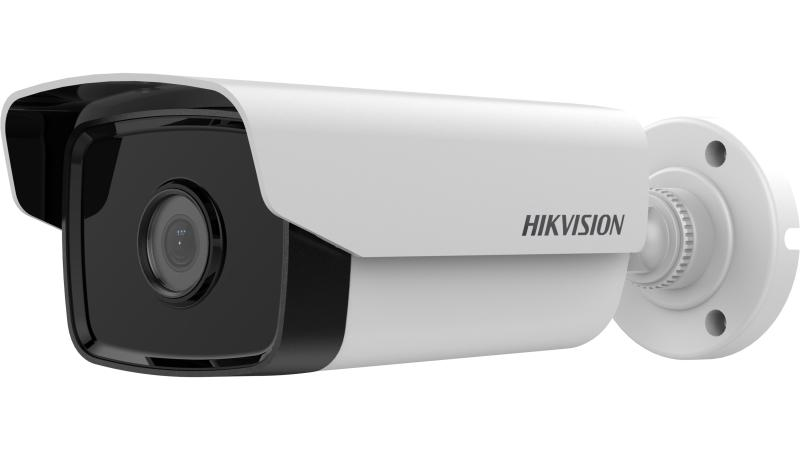

4 MP Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Water and dustresistant (IP67)
Easy installation with Power over Ethernet (PoE) technology
3D DNR technology delivers clean and sharp images

View Less

Available models:

DS-2CD1T43G0-I(4mm)

DS-2CD1T43G0-I(6mm)

DS-2CD1T43G0-I

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/3″ Progressive Scan CMOS
Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightICR Cut
Linkage MethodUpload to FTP, notify surveillance center, send email, trigger capture
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
Lens Type & FOV4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 88°; 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
Aperture4 mm F2.0; 6mm F1.6
Lens MountM12

Illuminator
IR Range50 m
Wavelength850nm
Smart Supplement LightYes

Video
Max. Resolution2560 × 1440
Main Stream50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression Main Stream: H.265/H.264/H.264+/H.265+; sub-stream: H.265/H.264 /MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Stream TypeMain stream/Sub-stream
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserIE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

Smart IRYes
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
SNR≥ 52 dB

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Intelligent (Traditional Algorithm)
Basic Event Motion detection, video tampering alarm

General
Firmware VersionV5.5.84
Web Client LanguageEnglish, Russian, Italian, French, Polish, Spanish, Turkish, Portuguese
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy masks, watermark, IP address filter
Software ResetYes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
Power Consumption and Current12 VDC, 0.50 A, max. 6W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 7 W
Power InterfaceΦ5.5 mm coaxial power plug
MaterialFront cover & bracket: metal; back cover & sun shield: plastic
Camera Dimension71.67 × 92.87 × 221.49 mm (2.82" × 3.65" × 8.72")
Package Dimension234 × 120 × 117 mm (9.21″ × 4.72″ × 4.61″)
Camera Weight 500 g (1.10 lb.)
With Package Weight670 g (1.48 lb.)

Approval
ProtectionIngress protection: IP67 (IEC 60529-2013)
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
