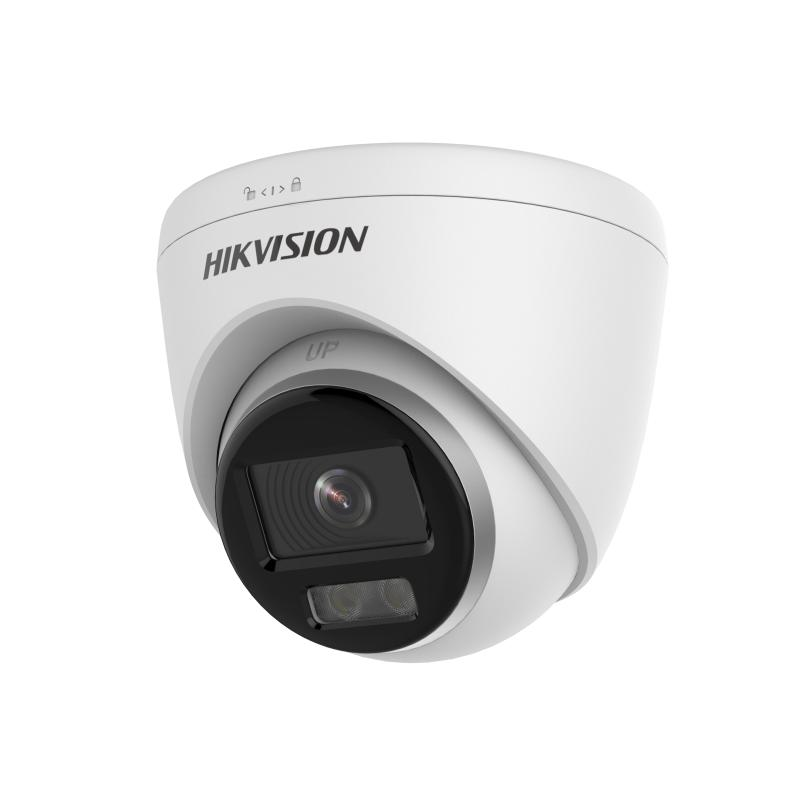

2 MP ColorVu Fixed Turret Network Camera

High quality imaging with 2 MP resolution
Excellent low-light performance
Efficient H.265+ compression technology
Water and dust resistant (IP67)
24/7 colorful imaging

View Less

Available models:

DS-2CD1327G0-L(2.8mm)

DS-2CD1327G0-L(4mm)

DS-2CD1327G0-L

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
Shutter Time1/3 s to 1/100,000 s
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Focal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞

Illuminator
Supplement Light TypeWhite
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Video
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseLine Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream

Network
ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, exception (illegal login)
LinkageUpload to FTP, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required.

General
Power12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE (802.3af, Type 1 Class 3, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W
DimensionØ110 × 100.8 mm (4.3" × 4.0")
Package Dimension150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 350 g (0.7 lb.)
With Package WeightApprox. 500 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish
General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIngression protection: IP67 (IEC 60529-2013)

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON)

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞

Illuminator

Supplement Light Type

White

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

BaseLine Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Network

Protocols

TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+


Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event

Motion detection, exception (illegal login)

Linkage

Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required.

General

Power

12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE (802.3af, Type 1 Class 3, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W

Dimension

Ø110 × 100.8 mm (4.3" × 4.0")

Package Dimension

150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 350 g (0.7 lb.)

With Package Weight

Approx. 500 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English

General Function

Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP67 (IEC 60529-2013)
